Hydraulic Freightlite VRC
Hydraulic Freightlite VRC

Hydraulic Freightlite VRC

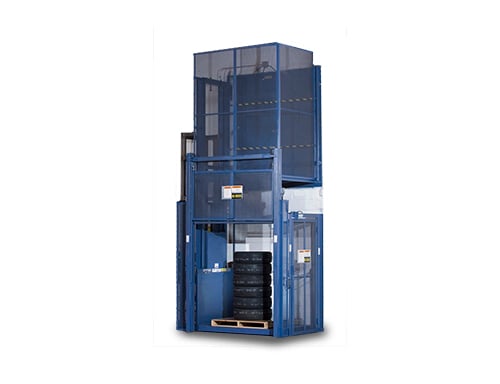

The FreightLite VRC is a highly reliable and efficient vertical lift designed for transporting lightweight loads up to 3,000 lbs. between different levels. Ideal for mezzanine applications, it features direct-acting cylinders for smooth operation, requires no pre-installation, and offers quick and easy setup, making it an exceptional value in the material handling industry.

Category:

Premier Solution for Lightweight Material Handling, Inventory, and Storage

The FreightLite VRC stands out in material handling equipment and is recognized for its exceptional performance and reliability. Designed specifically for the efficient and cost-effective transfer of lightweight loads up to 3,000 lbs. between different levels, the FreightLite is ideal for applications involving mezzanines and multi-level storage facilities. Its direct-acting cylinders ensure the lift carriage and load experience smooth and steady travel, maintaining consistent operation. Renowned for its outstanding value within the industry, the FreightLite VRC requires no pre-installation, significantly reducing setup time and complexity. This user-friendly lift system exemplifies simplicity and efficiency, making it a top choice for businesses seeking dependable and hassle-free material handling solutions.

Maintenance and Warranty

  • Lubrication-Free Rollers: Carriage rollers are maintenance-free and require no lubrication.
  • Safe Maintenance Support: A one-piece structural steel device supports the lift carriage safely during inspections and routine maintenance.
  • Easy Fluid Checks: The semi-transparent polyurethane oil reservoir allows quick and easy fluid level checks, preventing rust-related contamination.
  • Resilient Hydraulic Hoses: Double wire braided Parker hydraulic hoses resist wear, abrasion, and leaks.
  • Reliable Warranty: Autoquip provides a 1-year warranty on all parts and a 5-year warranty on the lift structure, guaranteeing industry-leading reliability.

Compliance with Recognized Standards

Durability and Quality

  • Seamless Carriage Operation: Equipped with high-capacity needle bearing rollers, ensuring consistent and smooth movement.
  • Effective Shock Absorption: High-impact rubber stops at the upper landing reduce noise and absorb shock effectively.
  • Self-Aligning Hydraulic Rams: The hydraulic lifting rams self-align to minimize side loading and reduce wear on bearings and seals.
  • Enhanced Stability: Stabilizer arms on the lifting rams prevent deflection and side loading, significantly extending the lifespan of the rams and seals.
  • Robust Platform: A steel-reinforced platform, at least ¼ inch thick, minimizes deck deflection, enhances load stability, and prolongs platform longevity.
  • Durable Guide Beams: Structural steel guide beams ensure reliable and consistent tracking of carriage rollers, extending their lifespan.
  • Chrome-Plated Rods: Chrome plating enhances the durability of the rods, extending the life of the cylinders and seals.

Simplicity

  • Pre-Assembled Shipping: Each hydraulic VRC is shipped fully assembled, including chains and cables, for hassle-free setup.
  • Easily Adjustable Stops: Upper landing carriage stops can be adjusted within a 3-inch range for flexibility.
  • Overhead-Free Design: The FreightLite carriage does not require an overhead structure, allowing for unlimited load height.
  • Versatile Loading: The cantilevered design permits loading from three different directions.

Safety

  • Consistent Leveling: Automatic re-pressurization keeps the carriage level with the upper landing during long idle periods.
  • Secure Loading Stops: Physical stops at the upper landing ensure the carriage remains stationary during loading and unloading.
  • Enhanced Personnel Safety: The standard barrier bar system protects personnel when the carriage is not at the upper landing.
  • Interlocked Gates: Landing gates lock automatically when the lift carriage leaves, preventing opening until the carriage returns.
  • Operation Safety Switches: Gate status switches ensure the lift does not operate while any gate is open.
  • Emergency Stop Mechanism: Hydraulic velocity fuses stop the lift in case of an uncontrolled descent due to hose rupture.
  • Structural Integrity: With a minimum 3:1 structural safety factor, these lifts are among the most robust in the industry.
